Aim Smartycam 3 Dual with free Goldstar CNC Roll Bar Camera Mounts

£2,430.00 Ex VAT

SmartyCam 3 Dual is the flagship version of SmartyCam 3 range, designed for any racer who wants to get the most out of any performance video on the track.

SKU: 996 Categories: , , , ,

Description

SmartyCam 3 Dual is the flagship version of SmartyCam 3 range, designed for any racer who wants to get the most out of any performance video on the track.
Dual Full HD camera system, Video output, CAN connection, USB-C connection, Ethernet port are only few of the features of SmartyCam 3 Dual: the most powerful of the range.
The new SmartyCam 3 Dual saves all your information to a supported SD card for up to 2TB of data, this includes speed, RPM, lap number, gear shifts and many more features. With a built-in data logger running on an external power of 9-15 volts, the new SmartyCam 3 Dual automatically powers on and off in-sync with your engine – and will start/stop recording for you. Analyse your data from a vast range of sources such as GPS track map, vehicle position and speed, lap & split times. Video format is at H.264 1920×1080 pixels, 60 FPS, and the display resolution of 2.4” 240×320 pixels gives your footage crisp condition. Our quality doesn’t falter, even under the pressure of extreme motorsport conditions such as poor weather, strong vibrations, continuous rain, and high/low temperatures as extreme as -10°C to + 50°C. Our camera is also waterproof (IP65) for extra protection.
SmartyCam 3 GP features a video output with SD interface. It allows you to send the video/audio directly to wherever you choose, for example your pit crew, at 30 or 60fps.
Two Video Inputs

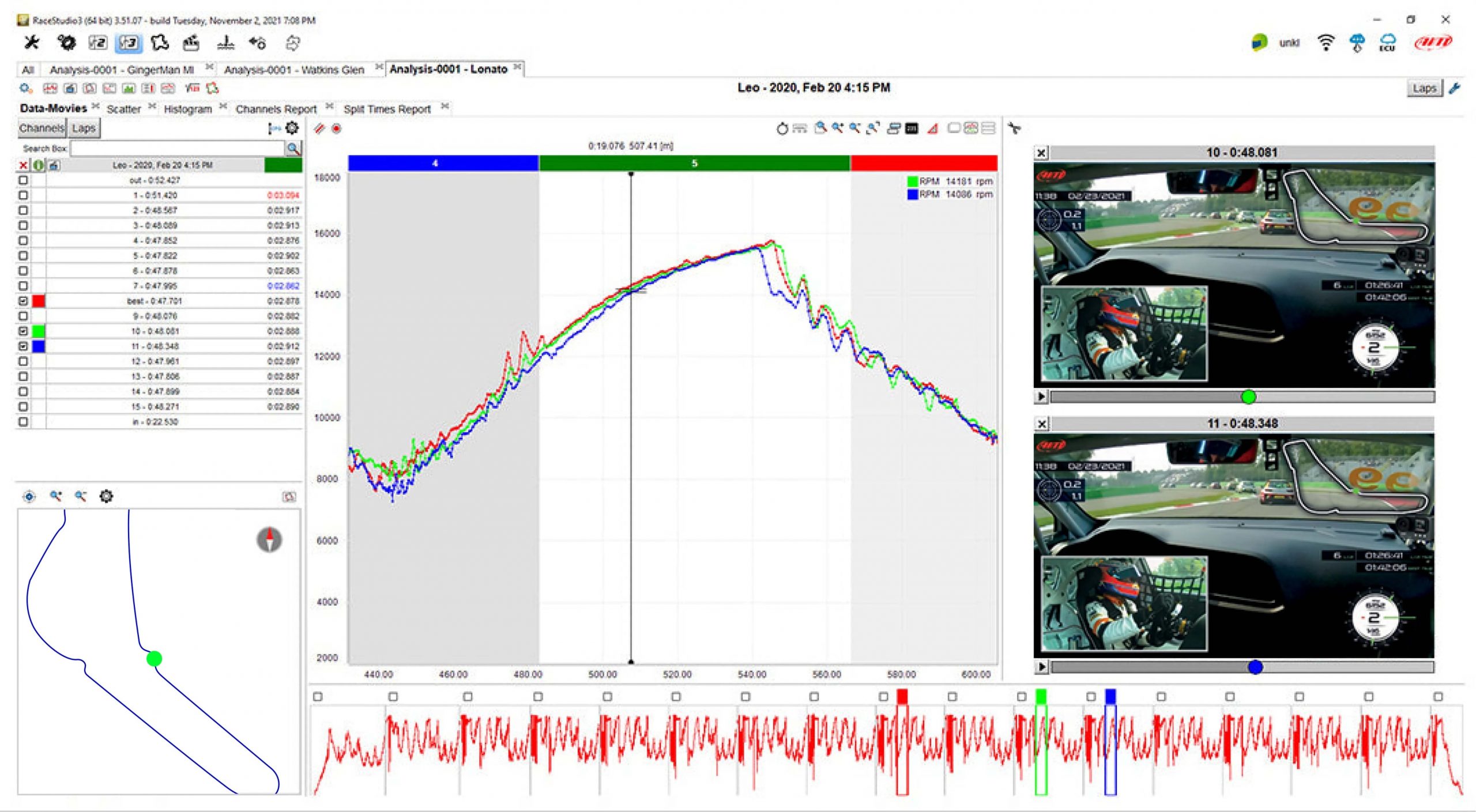

With two video inputs you can film from two locations on your vehicle which can be displayed on ‘Picture in Picture using Race Studio 3, essentially allowing you to overlay and analyse your driving from any two angles you like.

Picture in Picture

Overlay your videos with our all-new ‘Picture in Picture’ effect. Pick your angles and drive; you can configure auto start/stop to do the rest, and stream your video at 30 or 60 FPS straight to your pit crew, or even Facebook, Youtube – you name it – with a built-in ethernet connection.

The SmartyCam 3 Dual provides you with a CAN expansion that connects with many Aim devices such as the Solo 2 DL Laptimer, various Aim Dash Display Loggers, and PDM Dash systems. This is a standard practice within our products, however, we have also equipped the SmartyCam 3 Dual with unterminated CAN connections which allow you to connect the camera to any system as a standalone feature. No matter your vehicle and equipment, with the unterminated connectors you can run the Dual through the CAN/ECU connections of your choosing.

The SmartyCam 3 Dual includes a global shutter CMOS sensor and a low distortion lens with a field of view of 67°, 84° or 120° covering all areas, its 800g main unit (or bullet camera 45g) framework infallible in providing you with smooth and effortless footage.

The SmartyCam 3 Dual contains a rechargeable lithium battery. The main camera is 154.4×109.6x42mm, and the bullet camera is 24diamx48.2mm, and using its connectors – 1 Deutsch 22 pin + 1 SMA SDI Video out + 2 SMA bullet connection + 1 USB-C – the camera slots right into your vehicle.

Finished with a sleek anodised aluminium coat, the SmartyCam 3 Dual is assured to add efficiency, informational data, productivity, and style to your racing. AiM SmartyCam 3 Dual uses two bullet cameras, facing whichever way you would like – road cam and face cam, with adaptable overlay to suit whatever your needs. Here at AiM, we provide only the best innovations and are constantly and consistently working to better your racing experience.

Additional information

Camera 1 FOV

67°, 84°, 120°
Camera 2 FOV

67°, 84°, 120°
Camera 1 Cable length

2m, 4m
Camera 2 Cable length

2m, 4m
Harness Options

Std 22 pin CAN/RS232 and expantion with ethernett harness, Std 22 pin CAN/RS232 and expantion with ethernett harness and external mic/ intercom connection, 22 Pin plug and pins only
Camera 1 Roll Bar Mount

Universal, 32mm, 35mm, 40mm, 45mm, 50mm, Nylon cable tie version
Camera 2 Roll Bar Mount

Universal, 32mm, 35mm, 40mm, 45mm, 50mm, Nylon cable tie version
